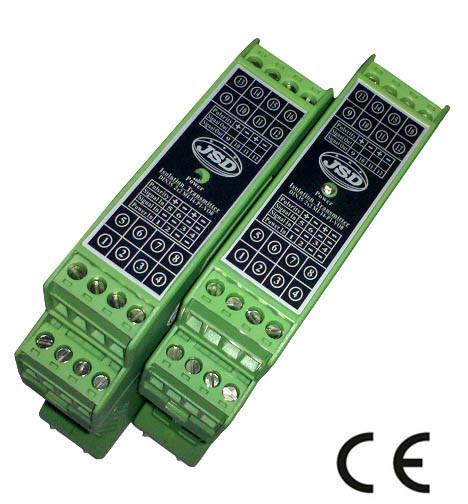

Jieshengda Technology 4-20mA/0-10V/0-5V analog signal isolation transmitter have PCB board soldering and standard DIN 35mm rail mounting two kinds, rail mounting can be achieved 1-input-1-output |1-input-2-output|1-input-3-output |1-input-4-output | 2-input-2-output |3-input-3-output the user simply by wiring can be used.

4-20mA/0-10V/0-5V analog signal isolation transmitter Application:

◆ DC current/voltage signal isolation, conversion and amplification

◆ Analog signal ground interference suppression and analog isolation, acquisition

◆ 4~20mA/0~5V/1~5V/0~±10V/0~±20mA sensor signal isolation, transformation and signal distribution, conversion

◆ instrumentation and sensor signal transceiver

◆ power isolation monitoring industrial site

◆ Analog signal data isolation, acquisition, conversion, and long-distance transmission

◆ industrial field signal isolation and conversion, and long-distance transmission without distortion

◆ power monitoring, medical equipment isolation barrier

◆ overcome inverter, large motors, power equipment, acquisition systems, DCS and PLC Field interference

4-20mA/0-10V/0-5V analog signal isolation transmitter Selection Example:

signal isolation transmitter Features:

◆ Small size, low cost, international standards DIN35mm rail mounting

◆ three-port isolation (input, output and power supply )

◆ 1-input- 2-output ,isolated between channels

◆ High accuracy (0.1% F.S, 0.2% F.S)

◆ High linearity (0.1% F.S)

◆ High isolation voltage (2500VDC/60S)

◆ Low temperature drift (35PPM / ℃)

◆ Wide Industrial class operation temperature (-45~+85℃)

◆ High reliability (MTBF>50 Wan hour)

◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)

◆ International standard signal input and output (0~2.5V/0~3.3V0~5V/1~5V/0~10V/0~±10V/4~20mA/0~± 20mA/0~20mA/0~10mA/0~1mA/0~100mV etc. optional)

◆ Passed CE certificate

analog signal isolation transmitter General Description:

Jieshengda Technology DIN35 1x2 MI active precision signal isolator is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room,PLC,PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift. Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.
