1-in-1-out passive 4-20mA isolation transmitter(4-20mA High accuracy isolation transmitter)

passive 4-20mA isolation transmitter have PCB board soldering and standard DIN 35mm rail slot fixed installation of two kinds, rail mounting can be achieved 1-in-1-out/2-in-2-out/3-in-3-out/4-in-4-out,if need possitive isolation pls into the wensite:www.jsd-iae.com

4-20mA isolation transmitter(DIN35 rail mounting) Application:

◆ DC current/voltage signal isolation, conversion and amplification

◆ Analog signal ground interference suppression and analog isolation, acquisition

◆ 4~20mA/0~20mA sensor signal isolation, transformation and signal distribution conversion

◆ instrumentation and sensor signal transceiver

◆ Two-wire primary/secondary instrumentation signal acquisition and isolation

◆ power isolation monitoring industrial site

◆ Analog signal data isolation, acquisition, conversion, and distance transmission

◆ Industrial field signal isolation and conversion, and distance transmission without distortion

◆ power monitoring, medical equipment isolation barrier
◆ overcome inverter, large motors, power equipment, acquisition systems, DCS and PLC Field interference

1-in-1-out passive 4-20mA isolation transmitter(4-20mA High accuracy isolation transmitter) General Description:

Jie Shengda Technology DIN35 1*1 4-20mA two-wire passive single/dual-channel analog signal isolation transmitter is a Signal Conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room,PLC,PC or DCS system. The product is isolated between input and output , the isolated voltage is up to 3000VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.

Parameters:

Selection Example:

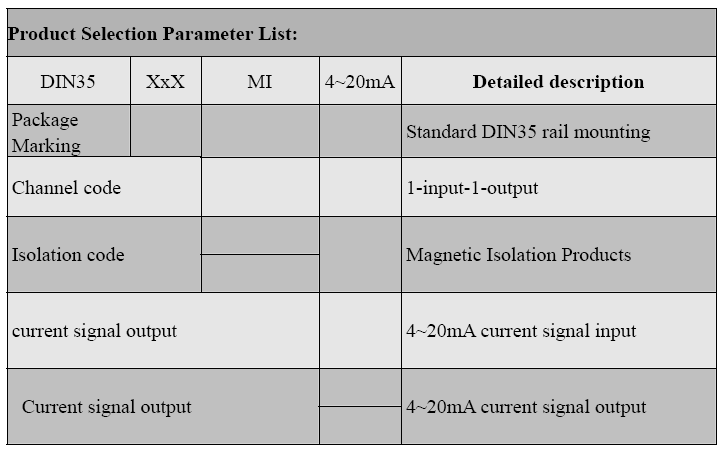

Example 1,Signal input :4-20mA; signal output :4-20mA;Model: DIN35 1x1 MI 4-20mA

Example 2,Signal input :0-20mA; signal output :0-20mA;Model: DIN35 1x1 MI 4-20mA

Example 3,Signal input :0-10mA; signal output :0-10mA;Model: DIN35 1x1 MI 4-20mA

Pins Function Description:

Notes
1．"NC" pin must not be connected to any external circuit, or it will damage the product itself;
2. Please read the user manual carefully before using. If any question please contact our technical support
department.
3. Please do not use this product in hazardous area. The power supply of this product should be 24VDC
power source. It is forbidden to use 220VAC power supply.
4．Calculating from the date of delivery, during normal use of the product, any quality problems are free
repair or replacement by Company during 3 years warranty,
5. To avoid invalid, or any failure, users disassemble this product is forbidden

Product Dimensions:

Product pictures:
