high accuracy isolation transmitter(0-10V to 4-20mA/0-10V to 4-20mA/0-5V to 0-10V etc.)Selection Example:

Example 1:Signal Input 1:0-5VDC；Signal Output 1:0-10VDC；Power Supply:24VDC；Model:DIN35 1x1 MI-V1-P1 -VO5
Example 2:Signal Input 1:4-20mA；Signal Output 1:4-20mA;Power Supply:24VDC；Model:DIN35 1x1 MI-I4-P1-IO1
Example 3:Signal Input 1:0-10VDC；Signal Output 1:4-20mA;Power Supply:24VDC；Model:DIN35 1x1 MI-V2-P1-IO1
Example 4:Signal Input 1:4-20mA；Signal Output 1:0-10V;Power Supply:24VDC；Model:DIN35 1x1 MI-I4-P1-VO5

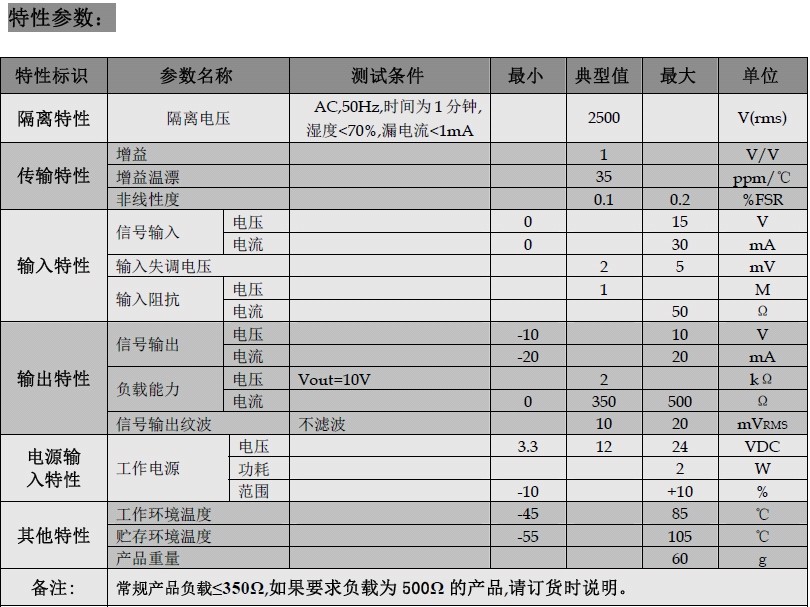

high accuracy isolation transmitter Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output and power supply )
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Low temperature drift (35PPM/℃)
◆ Wide Industrial class operation temperature (-45~+85℃)
◆ High reliability (MTBF>50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
◆ International standard signal (0~2.5V/0~3.3V0~5V/1~5V/0~10V/0~±10V/4~20mA/0~±20mA/0~20mA/0~10mA/0~1mA/0~100mV etc. optional)
◆ Passed CE Certificate

high accuracy isolation transmitter Applications:
◆ DC current/voltage signal isolation, conversion and amplification
◆ Industrial field signal isolation and conversion, and long-distance transmission without distortion
◆ Analog signal ground interference suppression and analog isolation, acquisition, conversion and
long-distance transmission
◆ 4~20mA/0~20mA/0~5V/0~10V4~20mA/0-20mA/0-10V/0~5V/ sensor signal isolation,
transformation and remote
◆ Instrumentation and sensor signal transceiver
◆ Power isolation monitoring industrial site
◆ Power monitoring, medical equipment isolation barrier
◆ Overcome the interference between various devices and acquisition, isolation, transformation analog signal

General Description:
Jieshengda Technology DIN35 1x1 MI active precision isolation transmitter is a signal conditioner with
electrical insulation between input and output. It can receive a variety of analog signal from the field
instrument, and transmit a standard output signal or user-specified special signal to the control room,PLC,
PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between
them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic
equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to
achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.
