High accuracy analog signal acquisition isolation transmitter Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output and power supply )
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Low temperature drift (35PPM/℃)
◆ Wide Industrial class operation temperature (-45~+85℃)
◆ High reliability (MTBF>50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
◆ International standard signal (0~2.5V/0~3.3V0~5V/1~5V/0~10V/0~±10V/4~20mA/0~±20mA/0~20mA/0~10mA/0~1mA/0~100mV etc. optional)
◆ Passed CE Certificate

analog signal acquisition isolation transmitter Selection Example:
Example 1:Signal Input 1:0-5V；Signal Output 1:0-10V；Power Supply:5VDC；Model:JSD TA-1001-145

Example 2:Signal Input 1:4-20mA；Signal Output 1:4-20mA;Power Supply:24VDC；Model:JSD TA-1001-D11

Example 3:Signal Input 1:0-20mA；Signal Output 1:4-20mA;Power Supply:24VDC；Model:JSD TA-1001-C11

Example 4:Signal Input 1:4-20mA；Signal Output 1:0-10V;Power Supply:24VDC；Model:JSD TA-1001-D15

analog signal acquisition isolation transmitter Description:
Jieshengda Technology DIN35 1x1 MI active precision isolation transmitter is a signal conditioner with
electrical insulation between input and output. It can receive a variety of analog signal from the field
instrument, and transmit a standard output signal or user-specified special signal to the control room,PLC,
PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between
them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic
equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to
achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.

analog signal isolation transmitter Applications:
◆ DC current/voltage signal isolation, conversion and amplification
◆ Industrial field signal isolation and conversion, and long-distance transmission without distortion
◆ Analog signal ground interference suppression and analog isolation, acquisition, conversion and long-distance transmission
◆ 4~20mA/0~20mA/0~5V/0~10V4~20mA/0-20mA/0-10V/0~5V/ sensor signal isolation,transformation and remote
◆ Instrumentation and sensor signal transceiver
◆ Power isolation monitoring industrial site
◆ Power monitoring, medical equipment isolation barrier
◆ Overcome the interference between various devices and acquisition, isolation, transformation analog signal

Application Wiring Diagram:

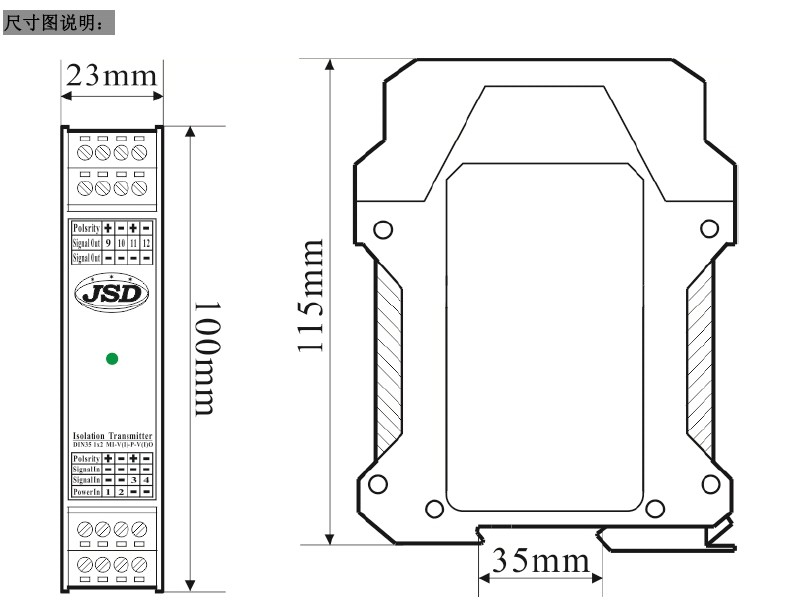

Product Dimensions:

Notes:

1,Please read the user manual carefully before using. If any question please contact our technical support department.

2,Please do not use this product in hazardous area. The power supply of this product should be 24VDC power source. It is forbidden to use 220VAC power supply.

3,Calculating from the date of delivery, during normal use of the product, any quality problems are free repair or replacement by Company during 3 years warranty,

4,To avoid invalid, or any failure, users disassemble this product is forbidden

5,the product is strictly forbidden demolish without permission for not damage

6,All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.

7,In this datasheet, all the test methods of indications are based on corporate standards.
