Analog signal to frequency pulse signal high accuracy isolation transmitter (V/F I/F converter)General Description:
Jie Shengda Technology JSD TAF-1001S series analog siganl to frequency pulse signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, user can install it directly. If the product fails to meet user, we provide customized.if need frequency pulse signal to analog signal isolation transmitter pls choose JSD TFA-1001 series F/I F/V converter,more isolation transmitter pls choose into the website:www.jsd-iae.com

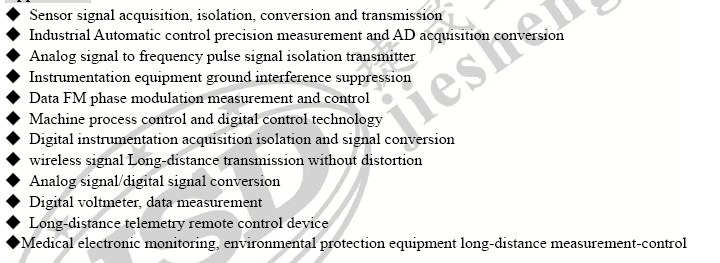

Analog signal to frequency pulse signal high accuracy isolation transmitter application

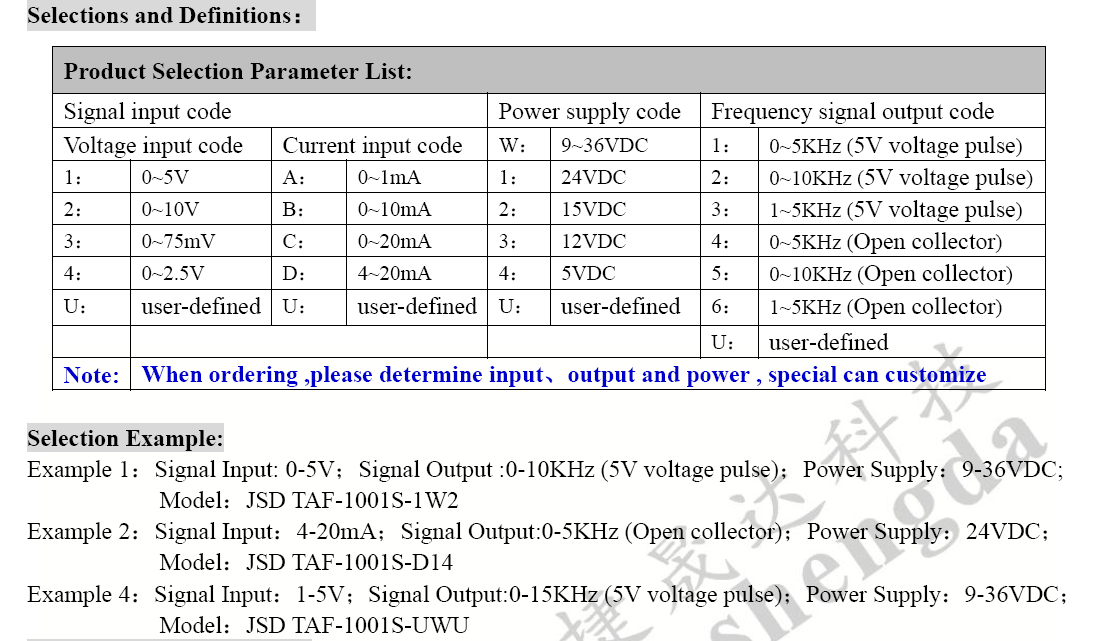

analog signal to frequency pulse signal isolation transmitter (V/F I/Fconverter)selection example:

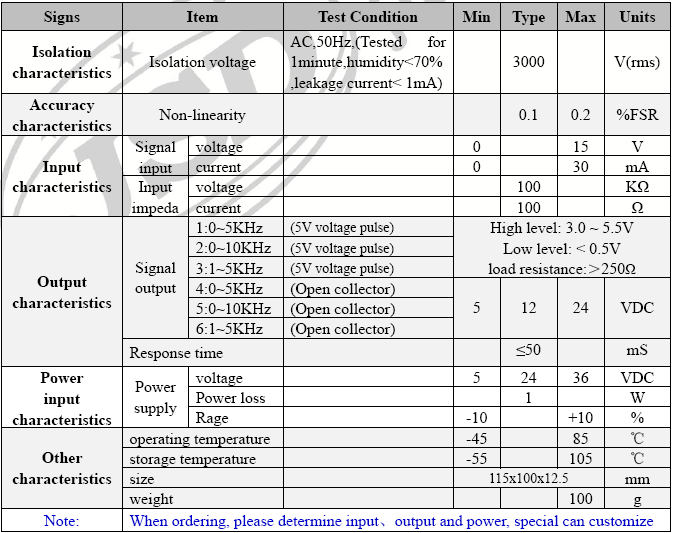

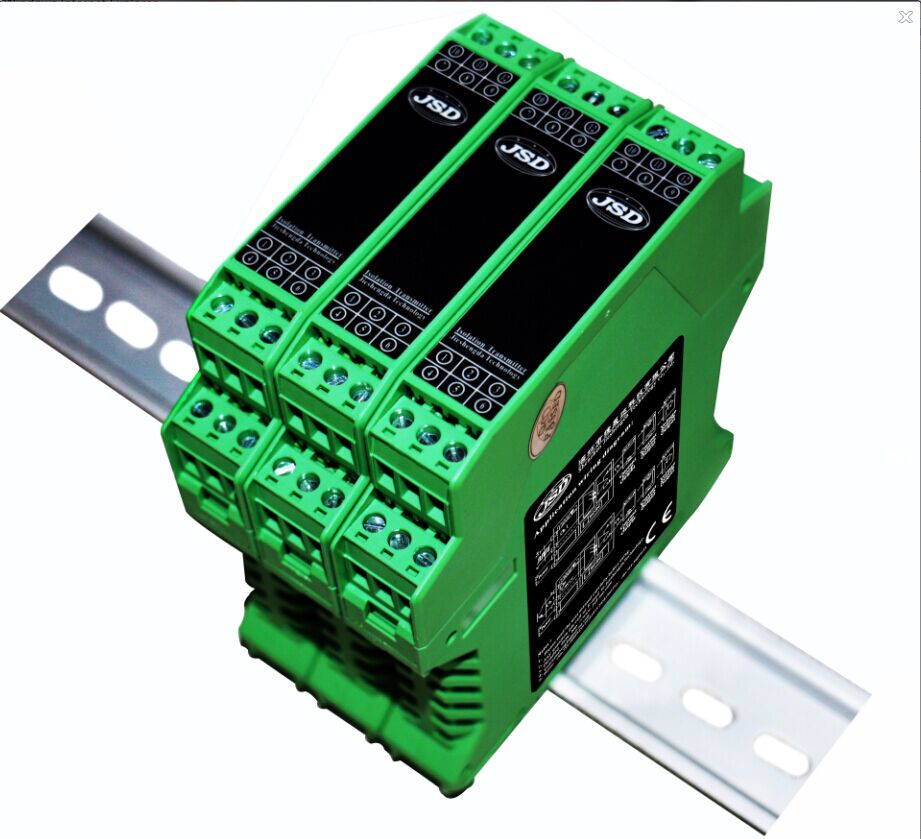

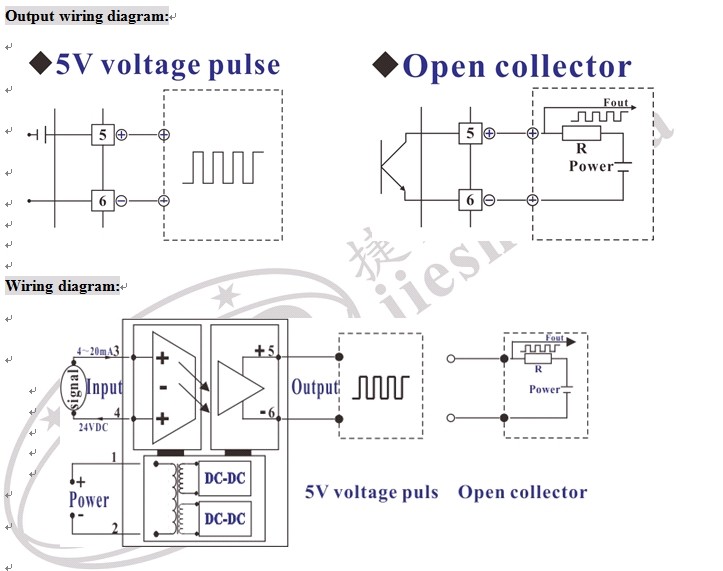

V/F I/Fconverter pictures and dimensions:

analog signal to frequency signal isolation transmitter (V/F I/Fconverter)Features:
Low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / Celsius)
Wide industrial class operation temperature (-45~+85Celsius)
High reliability (MTBF>50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
Passed CE Certificate

Note:

1,Please read the user manual carefully before using. If any question please contact our technical support department.

2,Please do not use this product in hazardous area. The power supply of this product should be DC power source. It is forbidden to use 220VAC power supply. ‘’NC" pin must not be connected to any external circuit, otherwise it will damage the product itself;

3,This product layout dimension are "mm" and "inch" as the unit, within "[]" are inch;

4,Calculating from the date of delivery, during normal use of the product, any quality problems are free repair or replacement by company during 3 years warranty,

5,the product is strictly forbidden demolish without permission for not damage

6,All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.

7,In this datasheet, all the test methods of indications are based on corporate standards.
