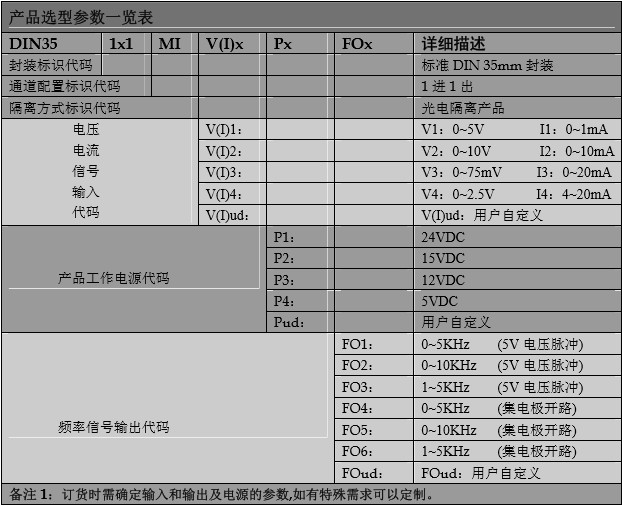

analog signal to frequency pulse signal isolation transmitter (V/F I/F converter)selection example:

Example 1:Signal Input: 0-5V；Signal Output :0-10KHz (5V voltage pulse)；Power Supply:9-36VDC;Model:JSD TAF-1001S-1W2

Example 2:Signal Input:4-20mA；Signal Output:0-5KHz (Open collector)；Power Supply:24VDC；Model:JSD TAF-1001S-D14

Example 3:Signal Input:4-20mA；Signal Output:0-5KHz (5V voltage pulse)；Power Supply:15VDC；

Model:JSD TAF-1001S-D21

Example 4:Signal Input:1-5V；Signal Output:0-15KHz (5V voltage pulse)；Power Supply:36VDC；Model:JSD TAF-1001S-UWU

Example5:Signal Input:0-10V；Signal Output:1-5KHz (Open collector)；Power Supply:9VDC；Model:JSD TAF-1001S-2W6

4~20mA to 0~5KHz/0~10KHz I/F converter Features:
Low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / Celsius)
Wide industrial class operation temperature (-45~+85Celsius)
High reliability (MTBF>50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
Passed CE Certificate
Frequency Pulse signal isolation transmitterGeneral Description:
Jie Shengda Technology DIN35 1x1 OI-V(I)x-Px-FOx series analog to frequency signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, user can install it directly. If the product fails to meet user, we provide customized.
