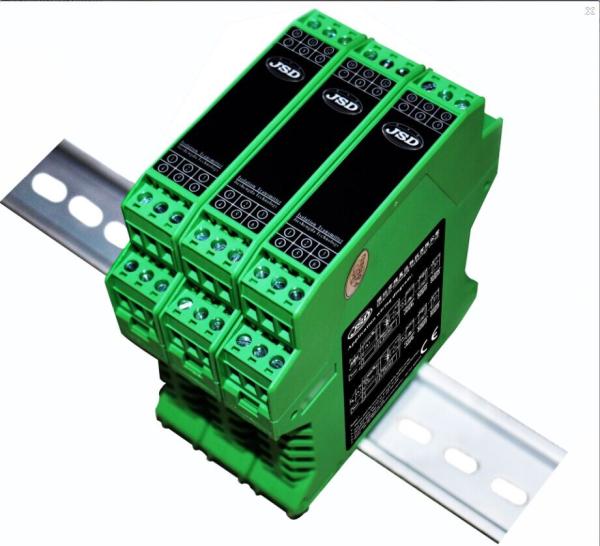

    4~20mA/0-10V to 0~5KHz/0~10KHz pulse converter

    Ask Lasest Price
    Brand Name : JSD
    Model Number : 4~20mA/0-10V to 0~5KHz/0~10KHz
    Certification : CE
    Price : competitive price
    Delivery Time : 2 work days
    Payment Terms : TT/PAYPAL
    Supply Ability : 100000 PCS/MONTH
    • Product Details
    • Company Profile

    4~20mA/0-10V to 0~5KHz/0~10KHz pulse converter


    Product Selection Parameter List:

    Signal input code

    Power supply code

    Frequency signal output code

    Voltage input code

    Current input code

    W:

    9~36VDC

    1:

    0~5KHz (5V voltage pulse)

    1:

    0~5V

    A:

    0~1mA

    1:

    24VDC

    2:

    0~10KHz (5V voltage pulse)

    2:

    0~10V

    B:

    0~10mA

    2:

    15VDC

    3:

    1~5KHz (5V voltage pulse)

    3:

    0~75mV

    C:

    0~20mA

    3:

    12VDC

    4:

    0~5KHz (Open collector)

    4:

    0~2.5V

    D:

    4~20mA

    4:

    5VDC

    5:

    0~10KHz (Open collector)

    U:

    user-defined

    U:

    user-defined

    U:

    user-defined

    6:

    1~5KHz (Open collector)




    U:

    user-defined

    Note:

    When ordering ,please determine input,output and power , special can customize


    analog signal to frequency pulse signal isolation transmitter (V/F converter)selection example:

    Example 1:Signal Input: 0-5V;Signal Output :0-10KHz (5V voltage pulse);Power Supply:9-36VDC;

    Model:JSD TAF-1001S-1W2

    Example 2:Signal Input:4-20mA;Signal Output:0-5KHz (Open collector);Power Supply:24VDC;

    Model:JSD TAF-1001S-D14

    Example 3:Signal Input:4-20mA;Signal Output:0-5KHz (5V voltage pulse);Power Supply:15VDC;

    Model:JSD TAF-1001S-D21

    Example 4:Signal Input:1-5V;Signal Output:0-15KHz (5V voltage pulse);Power Supply:36VDC;

    Model:JSD TAF-1001S-UWU

    Example 5:Signal Input:0-10V;Signal Output:1-5KHz (Open collector);Power Supply:9VDC;

    Model:JSD TAF-1001S-2W6

    4~20mA to 0~5KHz/0~10KHz pulse converter Features:
    Low cost, international standards DIN35mm rail mounting
    three-port isolation (input, output and power supply )
    High accuracy (0.1% F.S, 0.2% F.S)
    High linearity (0.1% F.S)
    High isolation voltage (2500VDC/60S)
    Low temperature drift (35PPM / Celsius)
    Wide industrial class operation temperature (-45~+85Celsius)
    High reliability (MTBF>50 Wan hour)
    Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
    International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
    Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
    Passed CE Certificate

    pulse converter General Description:

    Jieshengda Technology(JSD) JSD TAF-1001S ultra-thin series 1-in-1-out analog to frequency pulse signal converter is a high accuracy isolation transmitter.it can isolate and transform the inputting analog voltage/current signal into corresponding digital pulse frequency signal . JSD TAF-1001S series V/F frequency pulse signal isolation transmitter adopts ultra-thin shell and ultra-wide operating power supply design, its internal SMD chip technology and modular design makes the performance is more stable and reliable, The new isolation technology makes the product achieve three-port isolation (input, output and power supply),and the isolation voltage between them is up to 3000VDC. The V/F frequency pulse signal converter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation for easy user installation. If the product fails to meet user, we provide customized. if need putting feeding power to two-wire sensor please purchase JSD TAF-1021S series or JSD TAF-2002 2-in-2-out analog to frequency pulse converter, data sheet please contact Jieshengda technology .

    Electrical Characteristics:


    Signs

    Item

    Test Condition

    Min

    Type

    Max

    Units

    Isolation

    characteristics

    Isolation voltage

    AC,50Hz,(Tested for 1minute,humidity<70%,leakage current< 1mA)


    3000


    V(rms)

    Accuracy

    characteristics

    Non-linearity



    0.1

    0.2

    %FSR

    Input characteristics

    Signal input

    voltage


    0


    15

    V

    current


    0


    30

    mA

    Input impedance

    voltage



    100


    current



    100


    Ω

    Output characteristics

    Signal output

    1:0~5KHz

    (5V voltage pulse)

    High level: 3.0 ~ 5.5V

    Low level: < 0.5V

    load resistance:>250Ω

    2:0~10KHz

    (5V voltage pulse)

    3:1~5KHz

    (5V voltage pulse)

    4:0~5KHz

    (Open collector)

    5

    12

    24

    VDC

    5:0~10KHz

    (Open collector)

    6:1~5KHz

    (Open collector)

    Response time



    ≤50


    mS

    Power

    input

    characteristics

    Power supply

    voltage


    5

    24

    36

    VDC

    Power loss



    1

    2

    W

    Rage


    -10


    +10

    %

    Other characteristics

    operating temperature


    -45


    85

    storage temperature


    -55


    105

    size


    115x100x12.5

    mm

    weight




    100

    g

    Note:

    When ordering, please determine input,output and power, special can customize


    Signs

    Item

    Test Condition

    Min

    Type

    Max

    Units

    Isolation

    characteristics

    Isolation voltage

    AC,50Hz,(Tested for 1minute,humidity<70%,leakage current< 1mA)


    3000


    V(rms)

    Accuracy

    characteristics

    Non-linearity



    0.1

    0.2

    %FSR

    Input characteristics

    Signal input

    voltage


    0


    15

    V

    current


    0


    30

    mA

    Input impedance

    voltage



    100


    current



    100


    Ω

    Output characteristics

    Signal output

    1:0~5KHz

    (5V voltage pulse)

    High level: 3.0 ~ 5.5V

    Low level: < 0.5V

    load resistance:>250Ω

    2:0~10KHz

    (5V voltage pulse)

    3:1~5KHz

    (5V voltage pulse)

    4:0~5KHz

    (Open collector)

    5

    12

    24

    VDC

    5:0~10KHz

    (Open collector)

    6:1~5KHz

    (Open collector)

    Response time



    ≤50


    mS

    Power

    input

    characteristics

    Power supply

    voltage


    5

    24

    36

    VDC

    Power loss



    1

    2

    W

    Rage


    -10


    +10

    %

    Other characteristics

    operating temperature


    -45


    85

    storage temperature


    -55


    105

    size


    115x100x12.5

    mm

    weight




    100

    g

    Note:

    When ordering, please determine input,output and power, special can customize
