4-20mA/0-10VDC analog signal to frequency pulse signal high accuracy isolation transmitter (V/F I/F converter) Selection Example:
Example 1:Signal Input: 0-5V；Signal Output :0-10KHz (5V voltage pulse)；Power Supply:9-36VDC;Model:JSD TAF-1001S-1W2
Example 2:Signal Input:4-20mA；Signal Output:0-5KHz (Open collector)；Power Supply:24VDC；Model:JSD TAF-1001S-D14
Example 3:Signal Input:4-20mA；Signal Output:0-5KHz (5V voltage pulse)；Power Supply:15VDC；Model:JSD TAF-1001S-D21
Example 4:Signal Input:1-5V；Signal Output:0-15KHz (5V voltage pulse)；Power Supply:36VDC；Model:JSD TAF-1001S-UWU
Example5:Signal Input:0-10V；Signal Output:1-5KHz (Open collector)；Power Supply:9VDC；
Model:JSD TAF-1001S-2W6

V/F converter Features:
◆ Low cost, ultra-thin design, international standards DIN35mm rail mounting
◆ Three-port isolation (input, output and power supply )
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (3000VDC/60S)
◆ Low temperature drift (80PPM/℃)
◆ Wide industrial class operation temperature (-45~+85℃)
◆ High reliability (MTBF>50 Wan hour)
◆ Ultra-wide range power supply design (9~36VDC single power)
◆ International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA/0~10mA/0~2.5Vetc.)
◆ International standard signal input (0~5KHz/0~10KHz/1~5KHz/0~15KHz/0~20KHz/0-30KHz etc.)

4-20mA/0-10VDC to frequency pulse signal isolation transmitter Application:
◆ Sensor signal acquisition, isolation, conversion and transmission
◆ Industrial Automatic control precision measurement and AD acquisition conversion
◆ Analog signal to frequency pulse signal isolation transmitter
◆ Instrumentation equipment ground interference suppression
◆ Data FM phase modulation measurement and control
◆ Machine process control and digital control technology
◆ Digital instrumentation acquisition isolation and signal conversion
◆ wireless signal Long-distance transmission without distortion
◆ Analog signal/digital signal conversion
◆ Digital voltmeter, data measurement

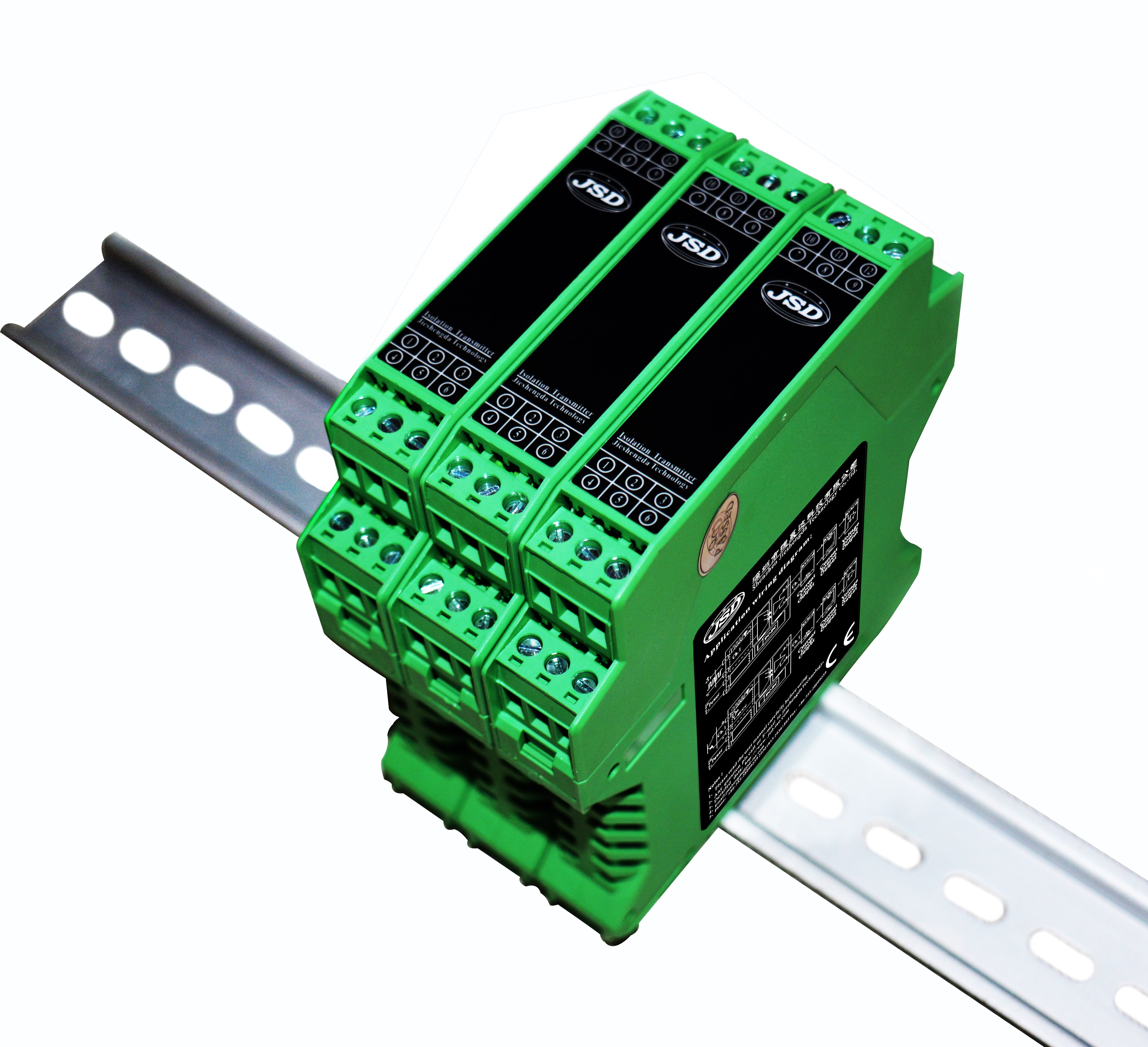

4-20mA/0-10VDC analog signal to frequency pulse signal high accuracy isolation transmitter (V/F I/F converter) productt pictures:
